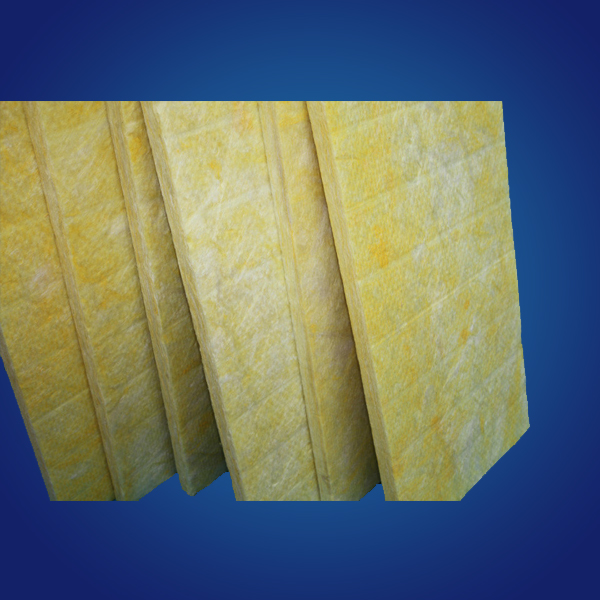

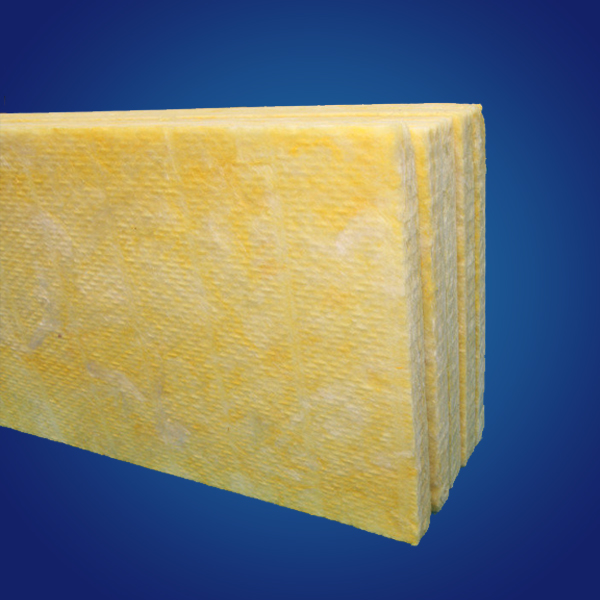

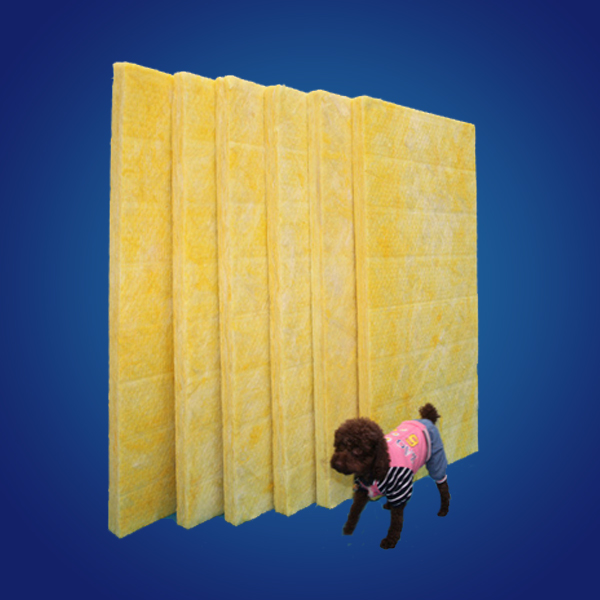

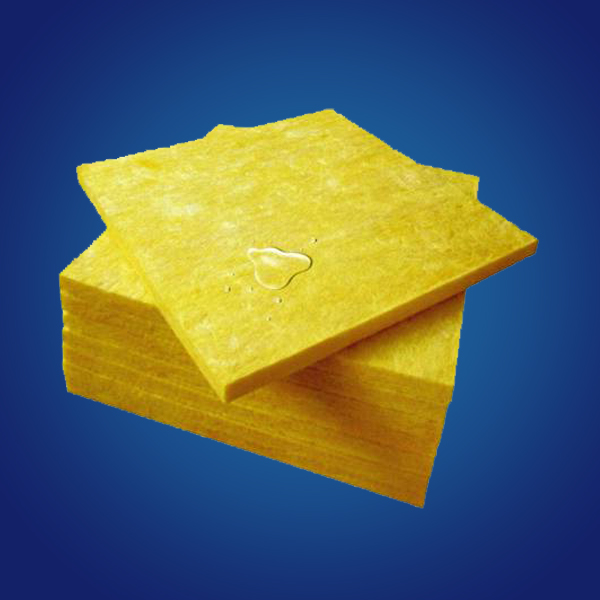

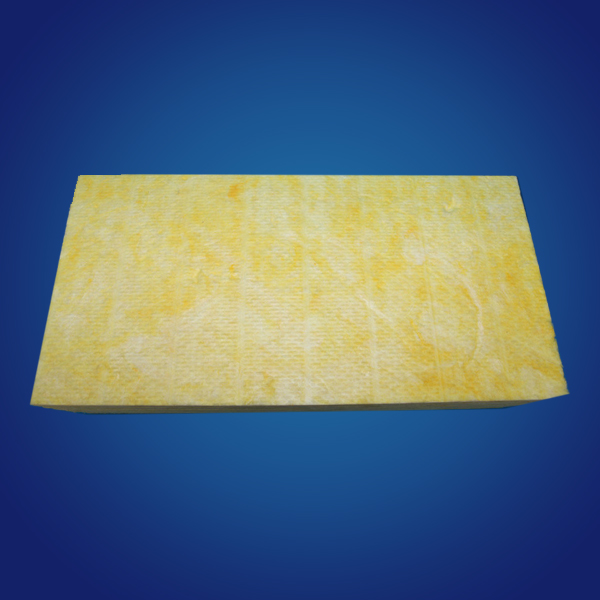

Glass Wool Board | Spec | Supply Scope |
Temperature(℃)
|
-120℃~400℃ |
|
Dimension (m)
|
1.2*0.6, 1.2*1.2, 1.2*2.4 | |
Thickness (mm) |
25~100 | |
Density (kg/m3)
|
24~96(1.5P~6P)
|
Item |
Index | Measured value | Remarks |
Bulk density(kg/m³) |
24~100 | 24~100 | GB/T 13350-2000 |
Average diameter of fibers(m) |
< 8.0 | 4.0~6.0 | GB/T 13350-2000 |
Moisture resistivity(%) |
> 98 | > 98 | JISA9512-2000 |
Thermal conductivity (W/m.k) |
0.036 | 0.036 | GB/T 13350-2000 |
Incombustibility |
Incombustible | Up to standard (Grade A) | GB/T 13350-2000 |
Sound absorption coefficient |
1.03product reverberation positioning 24kg/m3 2000HZ | GB/J47-83 | |
Max. working temperature(℃) |
400 | 410 | GB/T 13350-2000 |
厚度(Thickness) |
||||||||||
|
50 |
75 |
100 |
150 |
200 |
|||||
DENSITY |
METRIC |
ENGLISH |
METRIC |
ENGLISH |
METRIC |
ENGLISH |
METRIC |
ENGLISH |
METRIC |
ENGLISH |
kg/m3 |
㎡ ℃/W |
hr.ft2 °F/Btu |
㎡ ℃/W |
hr.ft2 °F/Btu |
㎡ ℃/W |
hr.ft2 °F/Btu |
㎡ ℃/W |
hr.ft2 °F/Btu |
㎡ ℃/W |
hr.ft2 °F/Btu |
12 |
1.16 |
6.6 |
1.74 |
9.9 |
2.33 |
13.2 |
3.49 |
19.8 |
4.65 |
26.4 |
14 |
1.25 |
7.1 |
1.88 |
10.7 |
2.55 |
14.2 |
3.75 |
21.3 |
5.00 |
28.4 |
16 |
1.28 |
7.3 |
1.92 |
10.9 |
2.56 |
14.6 |
3.85 |
21.8 |
5.13 |
29.1 |
20 |
1.35 |
7.7 |
2.03 |
11.5 |
2.70 |
15.4 |
4.05 |
23.0 |
5.41 |
30.7 |
24 |
1.39 |
7.9 |
2.08 |
11.8 |
2.78 |
15.8 |
4.17 |
23.7 |
5.56 |
31.6 |
32 |
1.47 |
8.4 |
2.21 |
12.5 |
2.94 |
16.7 |
4.41 |
25.1 |
5.88 |
33.4 |
40 |
1.52 |
8.6 |
2.27 |
12.9 |
3.03 |
17.2 |
4.55 |
25.8 |
6.06 |
34.4 |
48 |
1.56 |
8.9 |
2.34 |
13.3 |
3.13 |
17.8 |
4.69 |
26.6 |
6.25 |
35.5 |
